Nexans NMD 8/2 Red Jacket W Red/BK Cond 150ME Roll

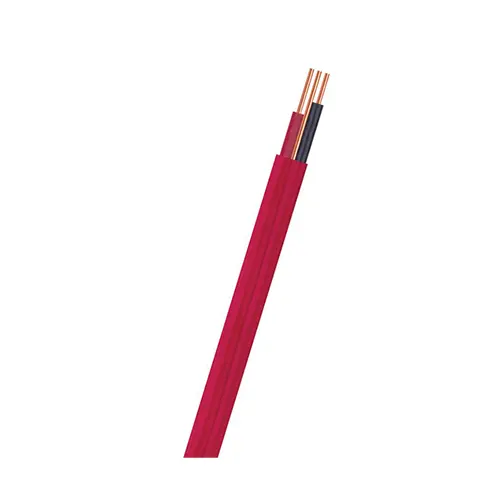

HEATEX® NMD90 (Red) is a variant of copper conductor CANADEX® NMD90, with NO WHITE WIRE in the 2 conductor cable. This cable is designed for use on 240-volt systems where there is no NEUTRAL, therefore the cable has a black and a red conductor in addition to the bare bonding wire. To make identification easier it is usually supplied with a RED overall jacket. It should NOT be used on 120 volt systems as there is no neutral, and it is dangerous to use either the red or the black as a neutral. Large sizes are available for use with electric furnaces.

Category:

Description

  • Packaging: Spool (75m)
  • Approximate net weight: 178 kg/km
  • Conductor diameter: 5.47 mm
  • Conductor size (AWG): 10
  • Number of strands: 1
  • Packaging: Spool (150m)
  • Approximate net weight: 178 kg/km
  • Conductor diameter: 5.47 mm
  • Conductor size (AWG): 10
  • Number of strands: 1
